Three phase: 5.5KW to 26KW
Voltage: 220V/380V
Insulation: B
Protection grade: IP68
Max Liquid temperature: 35°C
Connection and coupling size according to NEMA standard
Motor casing: SUS201
Top chock: cast-iron
Max diameter:φ141
Cable: 3+1wires
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Maximum fluid temperature up to +35°C
Maximum sand content: 0.25%
Maximum immersion: 80m
Minimum well diameter: 6 "
Rewindable motor or full obturated screen motor
Three-phase: 220V/380V/50Hz
Single-phase: 220V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards

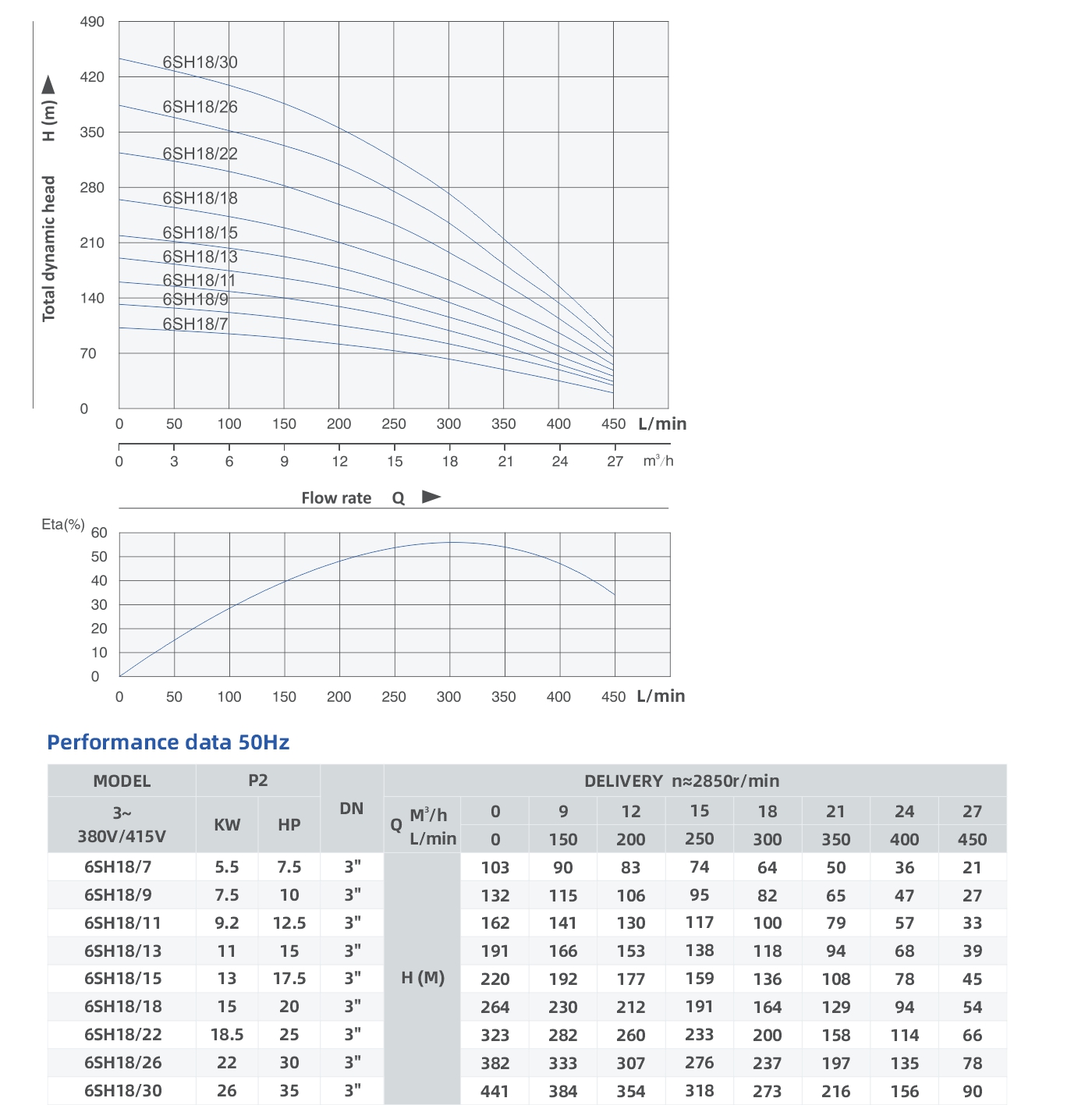

Curve tolerance according to ISO 2548
