應(yīng)用領(lǐng)域：

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

使用條件：

Maximum fluid temperature up to +35°C
Maximum sand content: 0.25%
Maximum immersion: 80m
Minimum well diameter: 4 "

泵和電機參數(shù)

Rewindable motor or full obturated screen motor
Three-phase: 220V/380V/50Hz
Single-phase: 220V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards
Company dimension standards

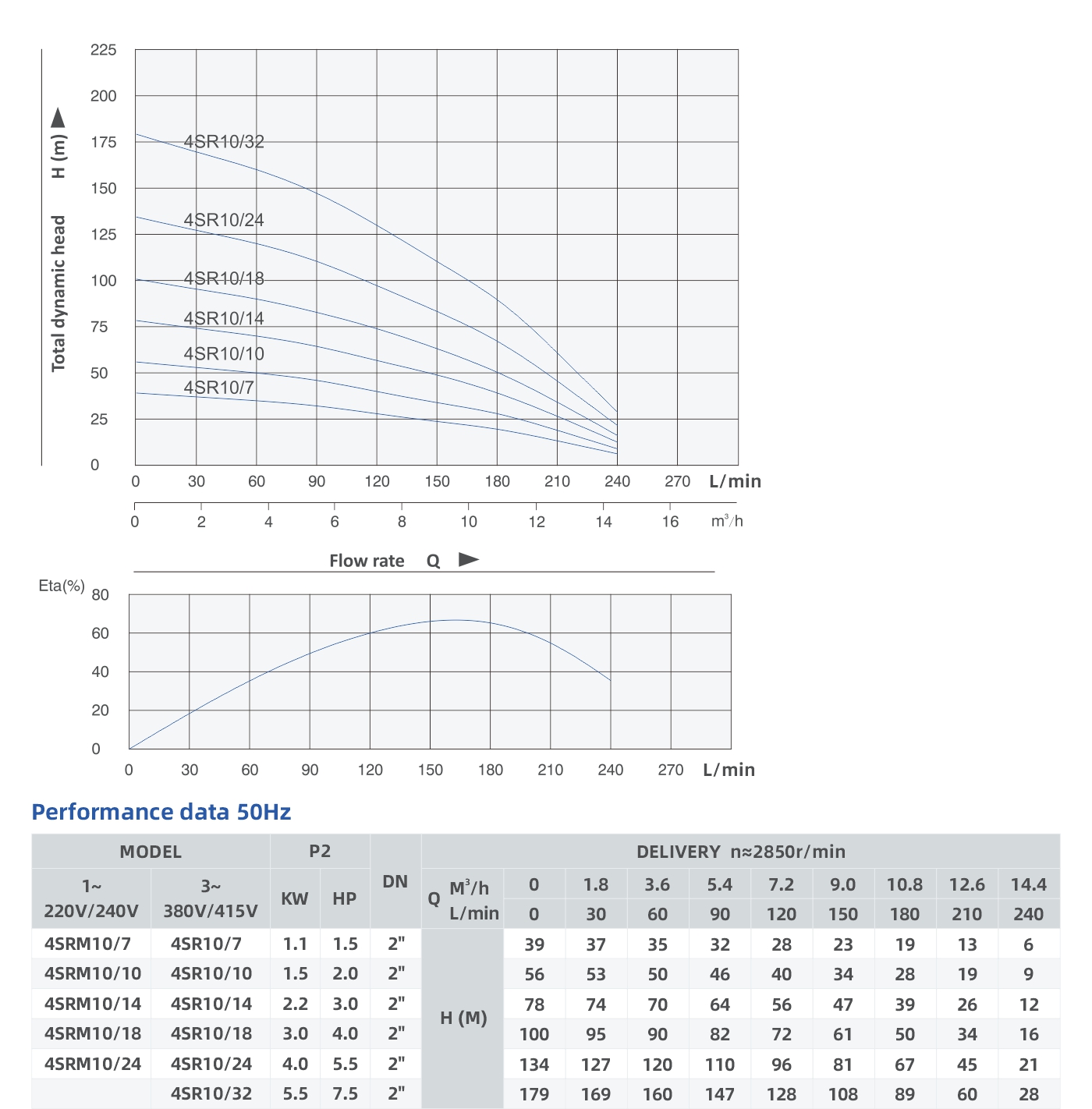

Curve tolerance according to ISO 2548
