應(yīng)用領(lǐng)域：

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

使用條件：

Maximum fluid temperature up to +35°C
Maximum sand content: 0.25%
Maximum immersion: 80m
Minimum well diameter: 3 "/4 "

泵和電機(jī)參數(shù)

Rewindable motor or full obturated screen motor
Three-phase: 220V/380V/60Hz
Single-phase: 110V/220V/60Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards

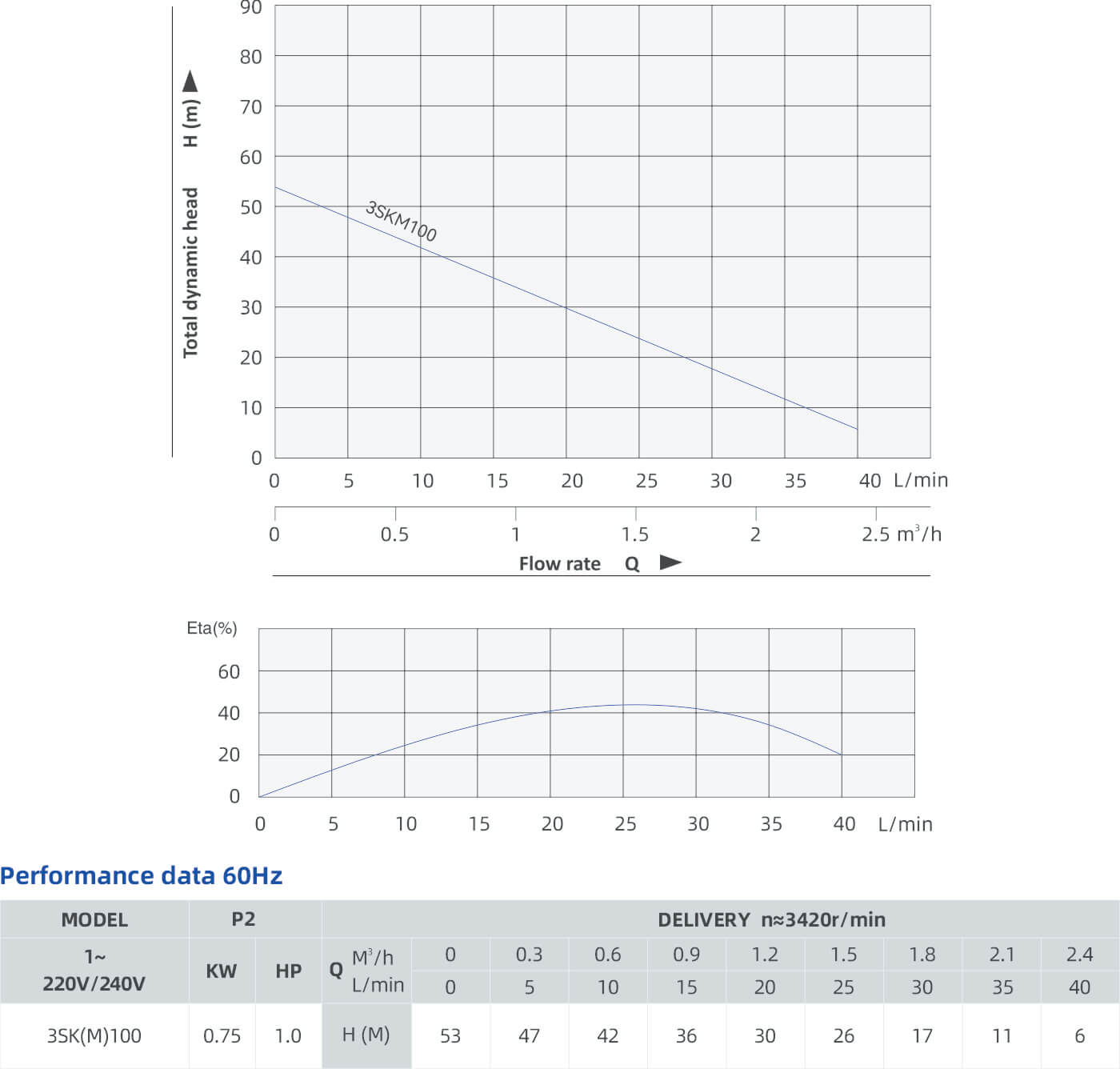

Curve tolerance according to ISO 2548
