深井潛水泵

LOADING IMAGES
3SH2.5(50Hz)
深井潛水泵

性能參數:

Single phase: 0.18KW to 1.5KW
Three phase: 0.18KW to 1.5KW
Voltage: 220V or 380V
Insulation: B
Protection grade: IP68
Max Liquid temperature: 35°C
Connection and coupling size according to Company standard
Motor casing: SUS201 or SUS304

Top chock: cast-iron or brass
Max diameter: φ75
Cable: 2 + 1wires or 3 + 1wires
Single phase capacitor inside motor use 2+1 wires
Single phase motor capacitor outside ( with control box, black wire is the public wire, blue is the main wire, brown is the sub wire, yellow and green is the grounding

技術參數

應用領域:

For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

使用條件:

Maximum fluid temperature up to +35°C
Maximum sand content: 0.25%
Maximum immersion: 80m
Minimum well diameter: 3 "

泵和電機參數

Rewindable motor or full obturated screen motor
Three-phase: 220V/380V/50Hz
Single-phase: 220V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
Company dimension standards

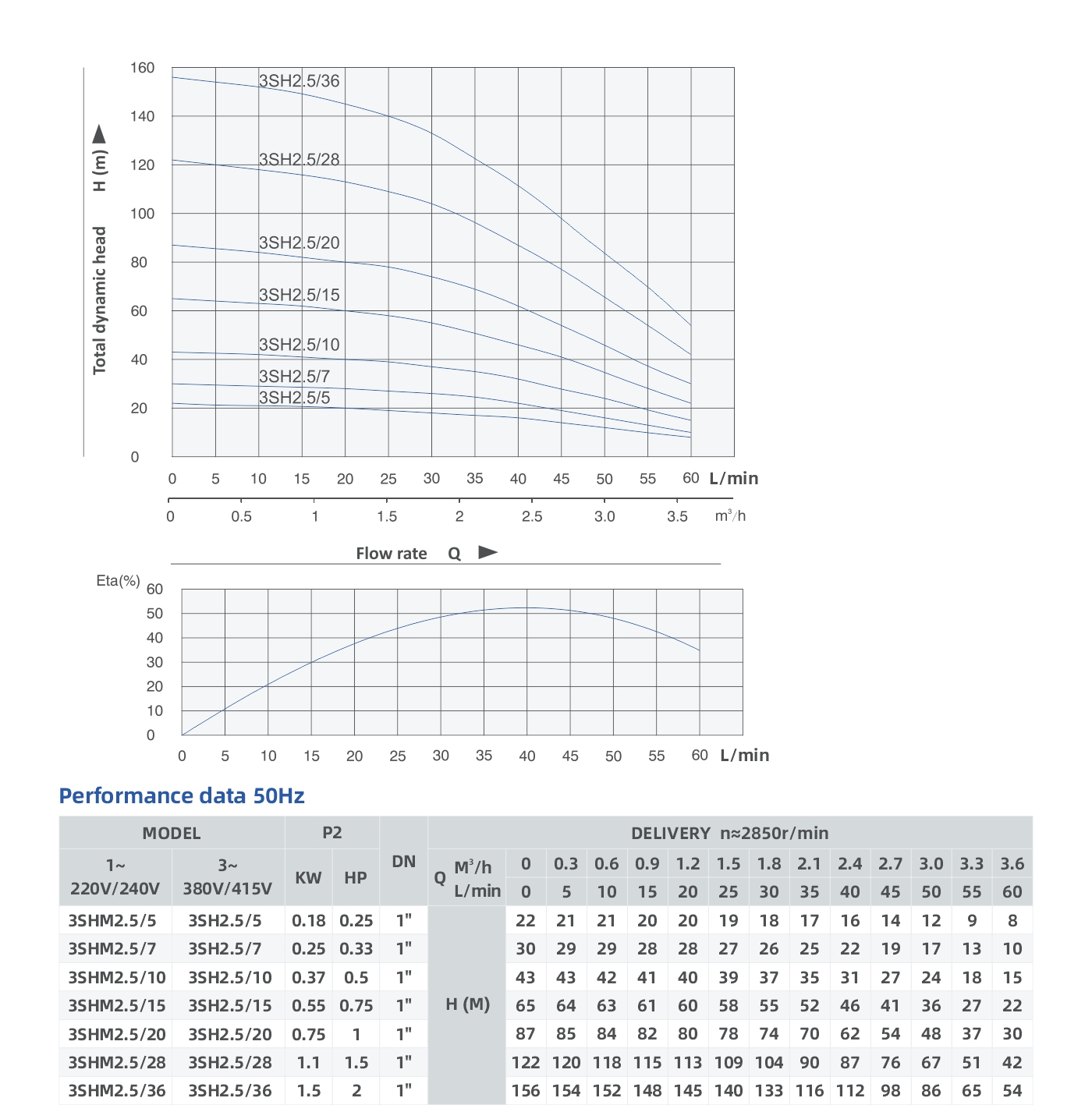

Curve tolerance according to ISO 2548
